Terragrunt Live — Structure, Dependencies, and Multi-Account

TL;DR

The tf-live directory structure maps directly to your AWS account topology: account / region / environment / module. Each level has one .hcl file. root.hcl reads them all via find_in_parent_folders at runtime and generates a unique S3 state key and a provider block per module. OIDC short-lived tokens replace static IAM keys. The whole thing bootstraps in one local apply and then runs through CI forever after.

The day allowed_account_ids saved production

We were onboarding a second AWS account. The management account’s OIDC role had permissions to assume roles in both accounts. A CI job was misconfigured — the matrix entry had the wrong account directory, so the provider block pointed at dev but was about to apply prod changes.

The pipeline failed with: Error: the account is not in the allowed account IDs list.

That’s allowed_account_ids in the generated provider block doing its job. One field. Zero infrastructure changed. The misconfiguration was caught before the first API call.

I now consider this the single most underrated line in any Terragrunt setup.

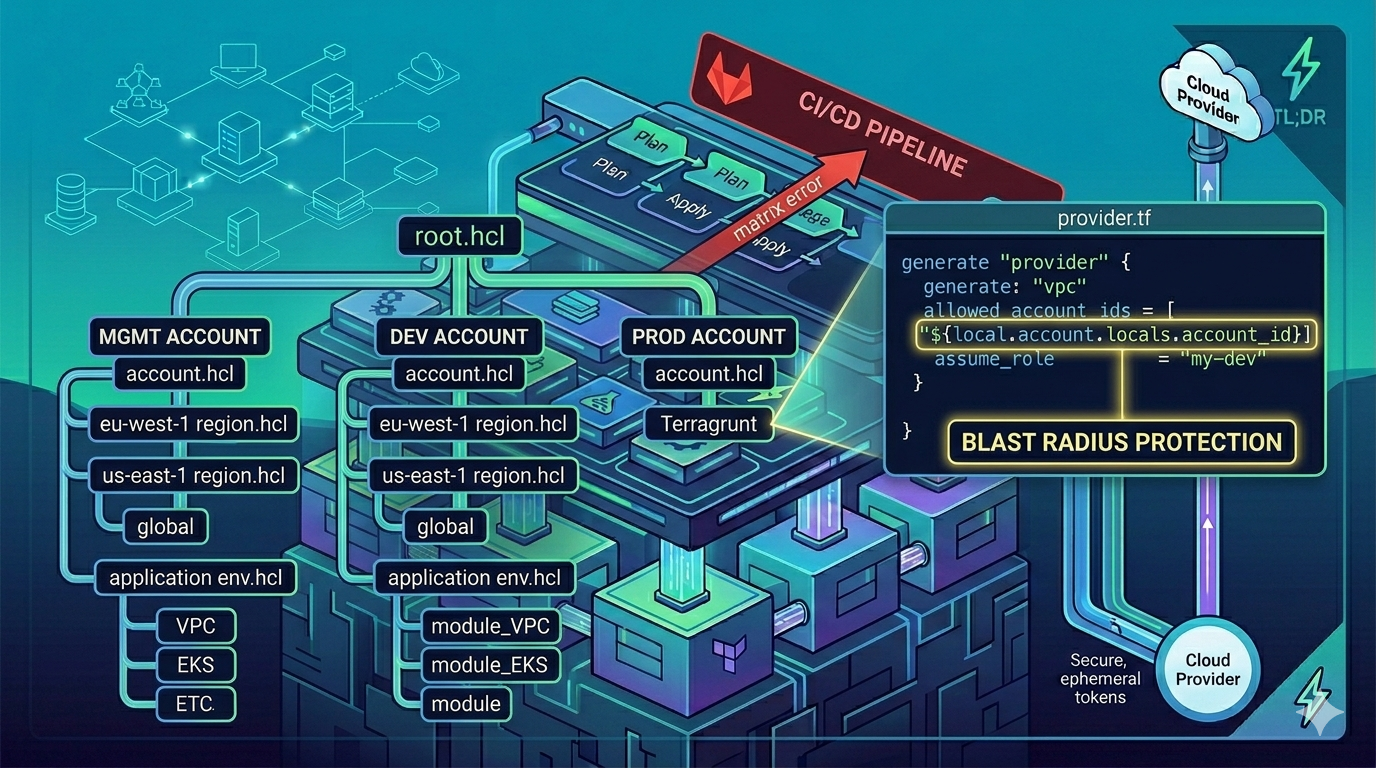

The hierarchy and what each file does

tf-live/
├── root.hcl          # Assembles everything; generates backend.tf + provider.tf
├── proj.hcl          # Project-wide: module repo URL, pinned tag, org name, resource tags
├── mgmt/             # Management account (IAM Identity Center)
│   ├── account.hcl
│   └── eu-west-1/
│       ├── region.hcl
│       └── global/
│           ├── env.hcl
│           ├── github-oidc/  → terragrunt.hcl
│           └── gitlab-oidc/  → terragrunt.hcl
├── dev/
│   ├── account.hcl
│   └── eu-west-1/
│       ├── region.hcl
│       ├── dev/
│       │   ├── env.hcl
│       │   ├── vpc/          → terragrunt.hcl
│       │   ├── eks/          → terragrunt.hcl
│       │   └── rds/          → terragrunt.hcl
│       └── playground/
│           └── env.hcl
└── prod/
    ├── account.hcl
    └── us-east-1/
        └── prod/
            └── env.hcl

proj.hcl — constants shared across all accounts. Module repository URL, pinned tag, org name, cost center tags. Changing the module version here updates every environment simultaneously on the next run --all apply.

# proj.hcl
locals {
  modules_repo = "https://github.com/hagzag/tf-modules"
  modules_tag  = "v1.0.3"
  github_org   = "example-org"
  project_tags = {
    "ManagedBy"  = "terragrunt"
    "CostCenter" = "CC-0000"
  }
}

account.hcl — the AWS account ID and alias. The alias is derived from the directory name itself via get_terragrunt_dir():

# dev/account.hcl
locals {
  account_id    = "222222222222"   # placeholder — replace with real account ID
  account_alias = basename(get_terragrunt_dir())
}

region.hcl — just the region, derived from its own directory name:

# dev/eu-west-1/region.hcl
locals {
  aws_region = basename(get_terragrunt_dir())
}

env.hcl — environment-specific overrides: VPC CIDR, per-env module version pin, environment tags.

The built-in functions that make this work

These aren’t Terragrunt tricks — they’re the documented API that makes the hierarchy feel seamless:

# root.hcl: reading all four parent configs
locals {
  # Walks up the tree until it finds each named file
  region  = read_terragrunt_config(find_in_parent_folders("region.hcl"))
  env     = read_terragrunt_config(find_in_parent_folders("env.hcl"))
  proj    = read_terragrunt_config(find_in_parent_folders("proj.hcl"))
  account = read_terragrunt_config(find_in_parent_folders("account.hcl"))
}

Function	What it returns	Why it matters
find_in_parent_folders("x.hcl")	Absolute path to the nearest x.hcl walking up	No hardcoded relative paths — works at any nesting depth
path_relative_to_include()	Path relative to the root include	Unique S3 state key per module: dev/eu-west-1/dev/vpc
get_terragrunt_dir()	Absolute path of the current terragrunt.hcl	basename(get_terragrunt_dir()) → derive alias from dir name
get_repo_root()	Git repo root (absolute path)	Reference scripts/assets from any module depth
read_terragrunt_config(path)	Parsed HCL locals from another file	Load the hierarchy into root.hcl

ℹ️ root.hcl vs terragrunt.hcl at the repo root

Early Terragrunt conventions used a terragrunt.hcl at the repo root as the parent config. The rename to root.hcl (used with find_in_parent_folders("root.hcl")) became common practice around 2022 to disambiguate the root config from module-level terragrunt.hcl files. Both patterns work. This series uses root.hcl throughout. If you see terragrunt.hcl at repo root in older examples, it’s the same concept.

The dependency graph in practice

Module terragrunt.hcl files declare their dependencies explicitly:

# dev/eu-west-1/dev/eks/terragrunt.hcl
include "root" {
  path = find_in_parent_folders("root.hcl")
}

dependency "vpc" {
  config_path = "../vpc"
  mock_outputs_allowed_terraform_commands = ["validate", "plan"]
  mock_outputs = {
    vpc_id             = "vpc-00000000"
    private_subnet_ids = ["subnet-00000000", "subnet-11111111"]
  }
}

locals {
  proj = read_terragrunt_config(find_in_parent_folders("proj.hcl"))
  env  = read_terragrunt_config(find_in_parent_folders("env.hcl"))
}

terraform {
  source = "${local.proj.locals.modules_repo}//eks?ref=${local.env.locals.modules_tag}"
}

inputs = {
  vpc_id     = dependency.vpc.outputs.vpc_id
  subnet_ids = dependency.vpc.outputs.private_subnet_ids
}

mock_outputs is the feature that unlocks greenfield planning: you can plan the EKS module on a brand-new environment before the VPC exists. Terragrunt substitutes the mock values. In a real apply, real outputs flow through.

Multi-account OIDC: hub-and-spoke without static keys

There are no long-lived AWS access keys in this setup. The hub-and-spoke model works like this:

1. GitHub Actions / GitLab CI mints a short-lived JWT (OIDC token)
2. CI calls sts:AssumeRoleWithWebIdentity — AWS verifies the JWT against the OIDC provider
3. CI gets temporary credentials for the management account role only
4. The management role has sts:AssumeRole permission into dev and prod account roles
5. Terraform’s assume_role block in the generated provider.tf handles the final hop

GitHub Actions OIDC token
  └── mgmt account: GitHubActionsRole (sts:AssumeRole only)
        ├── dev account: TerraformAutomationRole (AdministratorAccess)
        └── prod account: TerraformAutomationRole (AdministratorAccess)

The blast radius of a compromised CI token is bounded to the management account’s assumption permissions — it can’t directly access dev or prod resources. The final hop requires the Terraform provider block, which is generated from the account-specific account.hcl.

The OIDC roles live in mgmt/eu-west-1/global/github-oidc/ and gitlab-oidc/. They’re managed by Terragrunt like everything else — after the one-time bootstrap.

The bootstrap: run once, forget

Before CI can run, three things must exist:

1. The S3 bucket for Terraform state
2. TerraformAutomationRole in each account
3. The OIDC provider and trust policy in the management account

The .bootstrap/cross-account-role/ module handles the first two. It runs locally, once, using your SSO credentials. After that, the OIDC modules in mgmt/ take over and the whole thing is self-managing.

# One-time bootstrap (local, with SSO admin credentials)
cd .bootstrap/cross-account-role
terragrunt apply

# Then set up OIDC providers (still local, one-time)
cd mgmt/eu-west-1/global/github-oidc
terragrunt apply

Everything else runs through CI from that point forward.

What I’d do differently

The bootstrap module runs locally with SSO credentials. That’s fine for a one-time setup, but it creates an implicit dependency on a human with the right AWS profile configured. I’ve since moved this pattern in newer setups: a dedicated “org management” pipeline with a break-glass OIDC role handles the bootstrap on its own. Worth a separate post — but the pattern in this series is production-proven and gets you 95% of the way there.

Coming up next

Part 4 wires up the GitHub Actions pipeline: the change-detection logic that inspects which .hcl files changed and builds a deployment matrix covering exactly the right subset of this directory tree.

Reference: tf-live demo repo · hagzag/tf-modules

---
